概述
全不锈钢洁净室隔振工作台采用高性能气动振动
隔离表面，旨在提供最大的洁净室兼容性和隔振。

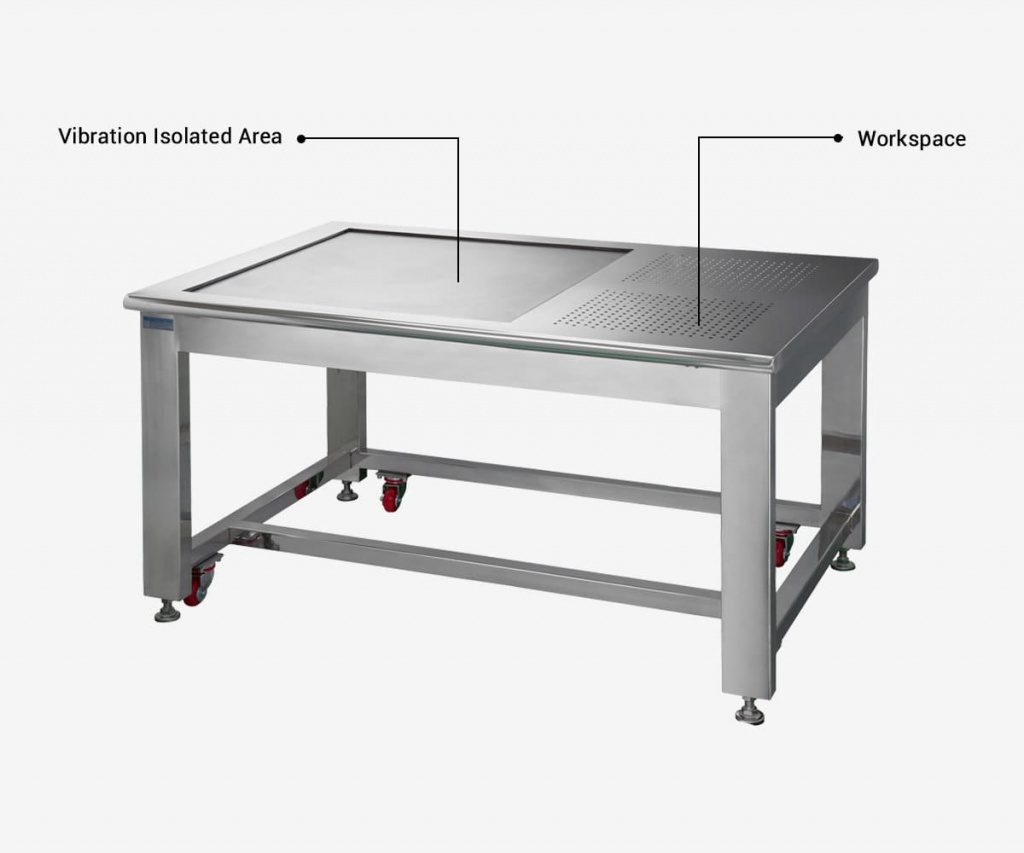

隔振表面与用户可以放置电器的工作空间分开。
产品特性
最大无尘室兼容性
卓越的隔振性能
自动调平系统
符合人体工程学设计的坐姿使用者
可选配件可设计到洁净室工作站
根据设备/个人规格定制

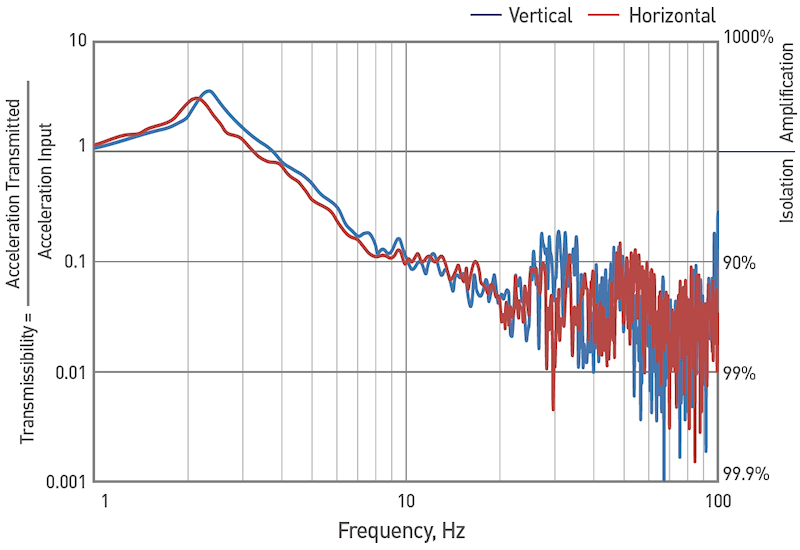

性能
在10Hz时，80% – 90%的隔振
规格
| Construction Material | 304 series Stainless Steel | |
| Workspace | ||
| Performance | ||
|---|---|---|
| Isolation System | Pneumatic Isolation | |
| Isolator Type | ISO-S | ISO-S1 |
| Resonant Frequency | Vertical/Horizontal 1.5 – 3.0 Hz | Vertical/Horizontal 1.5 – 3.0 Hz |
| Vibration Isolation at 10Hz | 80 – 90 % | 80 – 90% |
| Maximum Load Capacity | 300kg | 600kg |
| Automatic Leveling | Yes | |
| Leveling Repeatability | Standard Leveling Valve = ±1.0 mm Precision Leveling Valve = ±0.05 mm | |
| Required Air Supply | 3-5kg/cm² nitrogen or compressed air | |
| Height Adjustment | ±20mm | |
订购信息
订购表

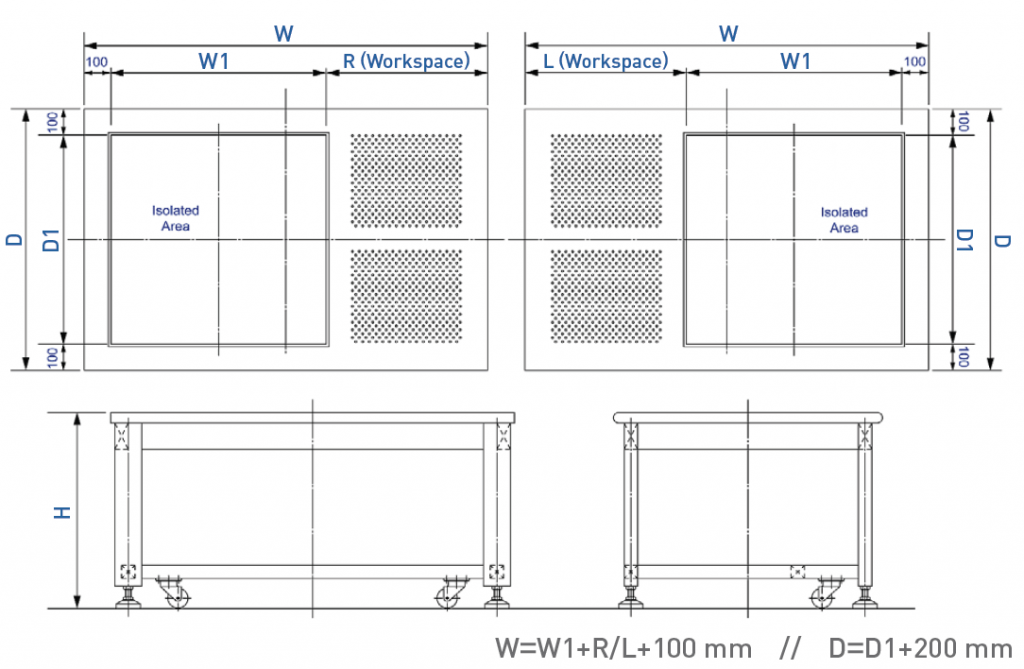

| 型号 | 隔振面积W1xD1(mm) | 尺寸 WxDxH(mm) | 重量(kg) |
| DVID-C-0405-L/R600-(H) | 400 x 500 | 1100 x 700 x H | 93 |
| DVID-C-0406-L/R600-(H) | 400 x 600 | 1100 x 800 x H | 97 |
| DVID-C-0465-L/R600-(H) | 400 x 650 | 1100 x 850 x H | 101 |
| DVID-C-0407-L/R600-(H) | 400 x 700 | 1100 x 900 x H | 104 |
| DVID-C-0506-L/R600-(H) | 500 x 600 | 1200 x 800 x H | 105 |
| DVID-C-0507-L/R600-(H) | 500 x 700 | 1200 x 900 x H | 110 |
| DVID-C-0606-L/R600-(H) | 600 x 600 | 1300 x 800 x H | 120 |
| DVID-C-0607-L/R600-(H) | 600 x 700 | 1300 x 900 x H | 136 |
| DVID-C-0608-L/R600-(H) | 600 x 800 | 1300 x 1000 x H | 146 |
| DVID-C-0609-L/R600-(H) | 600 x 900 | 1300 x 1100 x H | 161 |
| DVID-C-0707-L/R600-(H) | 700 x 700 | 1400 x 900 x H | 153 |
| DVID-C-0806-L/R600-(H) | 800 x 600 | 1500 x 800 x H | 151 |
| DVID-C-0808-L/R600-(H) | 800 x 800 | 1500 x 1000 x H | 182 |
| DVID-C-0906-L/R600-(H) | 900 x 600 | 1600 x 800 x H | 165 |
| DVID-C-0907-L/R600-(H) | 900 x 700 | 1600 x 900 x H | 180 |
| DVID-C-0908-L/R600-(H) | 900 x 800 | 1600 x 1000 x H | 195 |
| DVID-C-0909-L/R600-(H) | 900 x 900 | 1600 x 1100 x H | 213 |
| DVID-C-1006-L/R600-(H) | 1000 x 600 | 1700 x 800 x H | 175 |
| DVID-C-1007-L/R600-(H) | 1000 x 700 | 1700 x 900 x H | 194 |
| DVID-C-1075-L/R600-(H) | 1000 x 750 | 1700 x 950 x H | 204 |
| DVID-C-1207-L/R600-(H) | 1200 x 700 | 1900 x 900 x H | 213 |
| DVID-C-1208-L/R600-(H) | 1200 x 800 | 1900 x 1000 x H | 239 |
| DVID-C-1209-L/R600-(H) | 1200 x 900 | 1900 x 1100 x H | 265 |
| DVID-C-1508-L/R600-(H) | 1500 x 800 | 2200 x 1000 x H | 276 |
